Authentication

GeoMetrikks ships with single-admin session-cookie authentication:

APP_ADMIN_USER=admin          # defaults to "admin"
APP_ADMIN_PASSWORD=           # required unless OpenID Connect is configured (see below)

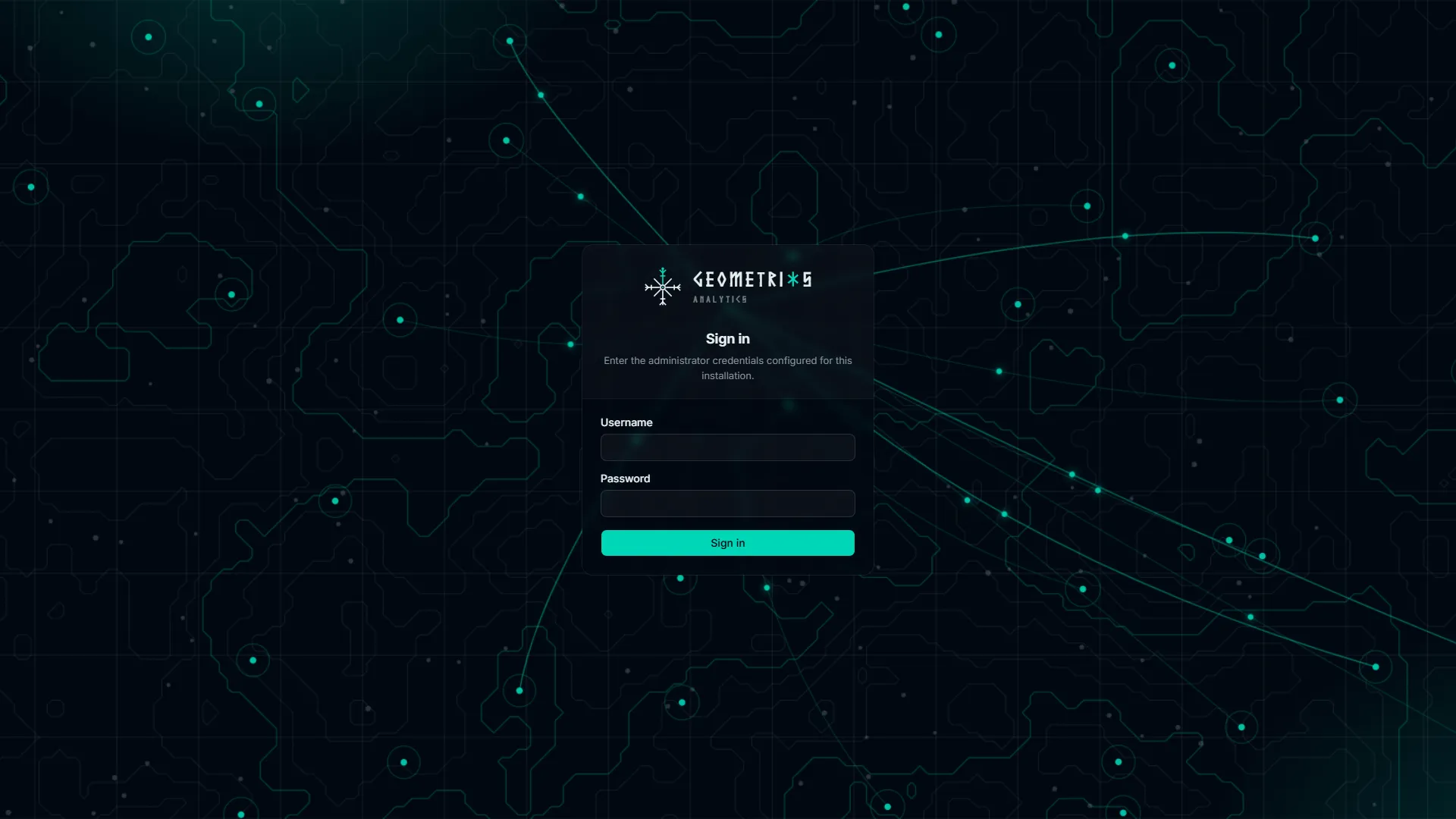

Log in through the web UI (/login) or POST /api/v1/auth/login. Everything under /api/ and /ws/ requires a session; the web app’s static files (you need them to reach the login page), /health, /health/ready and /schema stay open. Sessions are held in memory, so restarting the app container logs everyone out, and every session ends 7 days after login regardless of use.

If something else already controls who reaches the app (an authenticating proxy such as Authelia or Tailscale, or a network only you can reach), you can turn the built-in auth off:

APP_AUTH_DISABLED=true

There is then no login and no session: anyone who can reach the app has full access to it and to the WebSocket feeds.

OpenID Connect

GeoMetrikks can sign you in through an OpenID Connect identity provider such as Authelia, Authentik, Keycloak, Pocket ID or Google. It uses the authorization code flow with PKCE and needs a confidential client at the provider.

OIDC_ISSUER=https://auth.example.com          # the provider's issuer URL, https
OIDC_CLIENT_ID=geometrikks
OIDC_CLIENT_SECRET=
OIDC_REDIRECT_URI=https://geo.example.com/api/v1/auth/oidc/callback
OIDC_ALLOWED_GROUPS=admins                     # and/or OIDC_ALLOWED_USERS
APP_SESSION_SECURE=true                        # required with an https redirect URI

Register the callback URL above at the provider. OIDC_LOGOUT_IDP works only when the provider’s discovery document includes an end_session_endpoint. If it does, register https://geo.example.com/signed-out as the post-logout redirect URI before enabling the setting. Otherwise leave it false; logout still clears the GeoMetrikks session.

Who gets in. At least one of OIDC_ALLOWED_USERS (verified email addresses or subject identifiers) and OIDC_ALLOWED_GROUPS is required. Without an allow list, anyone the provider authenticates could sign in, which for a public provider such as Google means everyone. An email only matches when the provider marks it verified. The allow list is checked at login; removing someone at the provider takes effect the next time they sign in, which is at the latest 7 days later when their session ends.

Password login stays on while APP_ADMIN_PASSWORD is set, so you can still get in through the password form when the provider is down. Unset it to make the provider the only way in.

Authelia. Add a client under identity_providers.oidc.clients:

- client_id: geometrikks
  client_name: GeoMetrikks
  client_secret: '$pbkdf2-sha512$...'   # authelia crypto hash generate pbkdf2
  public: false
  authorization_policy: two_factor
  redirect_uris:
    - https://geo.example.com/api/v1/auth/oidc/callback
  scopes: [openid, profile, email, groups]
  token_endpoint_auth_method: client_secret_basic

Authelia serves groups and email from the userinfo endpoint rather than the ID token; GeoMetrikks reads both, so nothing extra is needed. Keep the groups scope in OIDC_SCOPES (the default includes it). Authelia 4.39 does not advertise an OIDC end-session endpoint, so leave OIDC_LOGOUT_IDP=false.

Authentik. Create an OAuth2/OpenID provider with client type Confidential, the redirect URI above, and the default openid, email and profile scope mappings; groups come through the default profile mapping. Set OIDC_ISSUER to the application’s issuer URL shown on the provider page (it ends in the application slug) and OIDC_SCOPES="openid profile email" unless you add a groups scope.

Google. Google does not accept a groups scope, so set OIDC_SCOPES="openid profile email" and allow people by verified email with OIDC_ALLOWED_USERS. Google’s discovery document does not advertise an OIDC end-session endpoint, so leave OIDC_LOGOUT_IDP=false.

Internal CA. If the provider’s certificate is signed by your own CA, point OIDC_CA_BUNDLE at its PEM file. There is no switch to turn verification off.

The Settings > Status page shows whether the provider’s discovery document could be fetched. Startup never waits for the provider; if it is still coming up, the first sign-in attempt retries.
